The SonicWall TZ series enables small to mid-size organizations and distributed enterprises realize the benefits of an integrated security solution that checks all the boxes. Combining high-speed threat prevention and software-defined wide area networking (SD-WAN) technology with an extensive range of networking and wireless features plus simplified deployment and centralized management, the TZ series provides a unified security solution at a low total cost of ownership.
| SOHO/ SOHO W | SOHO 250/ SOHO 250 W | TZ300/ TZ300 W | TZ300P | TZ350/ TZ350 W | TZ400/ TZ400 W | TZ500/ TZ500 W | TZ600 | TZ600P | |
|---|---|---|---|---|---|---|---|---|---|
TotalSecure Firewall Overview
| |||||||||
| Deep Packet Inspection Firewall |  | | | | | | | | |
| Stateful Packet Inspection Firewall | | | | | | | | | |
| Unlimited File Size Protection | | | | | | | | | |
| Protocols Scanned | | | | | | | | | |
Firewall General |
|||||||||
| Interfaces | 5x1-GbE, 1 USB, 1 Console | 5x1-GbE, 1 USB, 1 Console | 5x1-GbE, 1 USB, 1 Console | 5x1-GbE, 1 USB, 1 Console | 5x1-GbE, 1 USB, 1 Console | 7x1-GbE, 1 USB, 1 Console | 8x1-GbE, 2 USB, 1 Console | 10x1-GbE, 2 USB, 1 Console, 1 Expansion Slot | 10x1-GbE, 2 USB, 1 Console, 1 Expansion Slot |
| Power over Ethernet (PoE) Support | - | - | - | 2 ports (2 PoE or 1 PoE+) | - | - | - | - | 4 ports (4 PoE or 4 PoE+) |
| Management | CLI, SSH, Web GUI, Capture Security Center, GMS, REST APIs | CLI, SSH, Web GUI, Capture Security Center, GMS, REST APIs | CLI, SSH, Web GUI, Capture Security Center, GMS, REST APIs | CLI, SSH, Web GUI, Capture Security Center, GMS, REST APIs | CLI, SSH, Web GUI, Capture Security Center, GMS, REST APIs | CLI, SSH, Web GUI, Capture Security Center, GMS, REST APIs | CLI, SSH, Web GUI, Capture Security Center, GMS, REST APIs | CLI, SSH, Web GUI, Capture Security Center, GMS, REST APIs | CLI, SSH, Web GUI, Capture Security Center, GMS, REST APIs |
| Nodes Supported | Unrestricted | Unrestricted | Unrestricted | Unrestricted | Unrestricted | Unrestricted | Unrestricted | Unrestricted | Unrestricted |
| Site-to-Site VPN Tunnels | 10 | 10 | 10 | 10 | 15 | 20 | 25 | 50 | 50 |
| IPSec VPN Clients (Maximum) | 1 (5) | 1 (5) | 1 (10) | 1 (10) | 1 (10) | 2 (25) | 2 (25) | 2 (25) | 2 (25) |
| SSL VPN Licenses (Maximum) | 1 (10) | 1 (25) | 1 (50) | 1 (50) | 1 (75) | 2 (100) | 2 (150) | 2 (200) | 2 (200) |
| VLAN Interfaces | 25 | 25 | 25 | 25 | 25 | 50 | 50 | 50 | 50 |
| Wireless Controller | | | | | | | | | |
| WWAN Failover (4G/LTE) | | | | | | | | | |
| Network Switch Management | | | | | | | | | |
SonicWall TZ Series

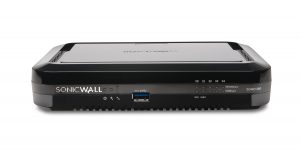

SonicWall SOHO 250
Security for small networks and distributed enterprises - 200Mbps Security - Site-to-site and client VPN - 600Mbps Firewall - 5 x 10/100/1000 interfaces Suitable for offices of up to 10 users

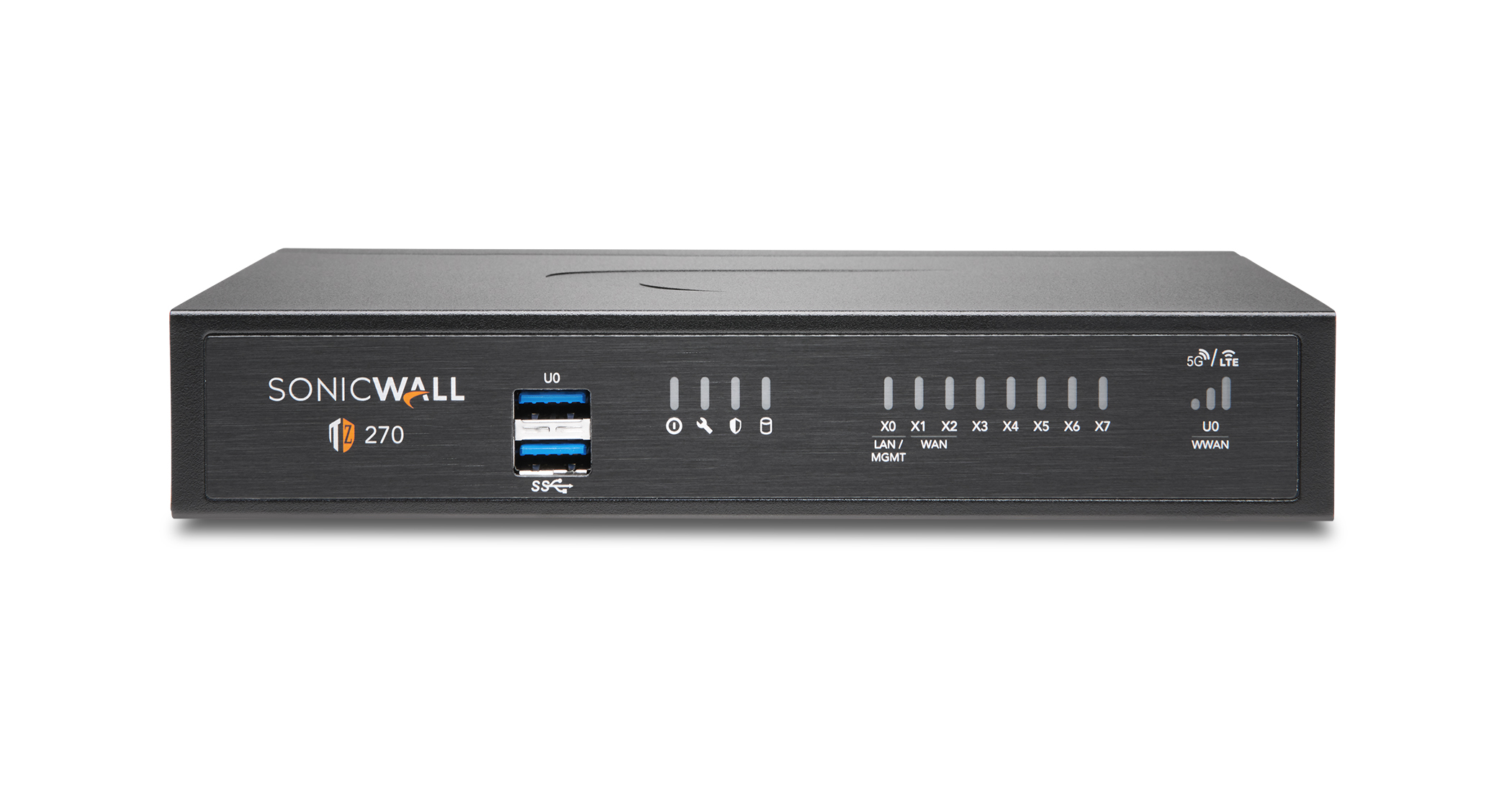

NEW SonicWall TZ270
Top performance for home/small offices - 750Mbps Full Security - Wireless devices available - 2.0Gbps Firewall - 200 IPSec, 50 SSL -VPN clients (max) Powered by SonicOS 7.0
SonicWall TZ350
Powerful security solution for small offices - 335Mbps Full Security - 10 Site-to-site Connections - 1Gbps Firewall - 15 IPSec, 75 SSL-VPN clients (max) Suitable for offices of up to 15 users
NEW SonicWall TZ370
Best-in-class performance for small businesses - 1.0Gbps Full Security- Wireless devices available - 3.0Gbps Firewall- 200 IPSec, 100 SSL-VPN clients (max) Powered by SonicOS 7.0

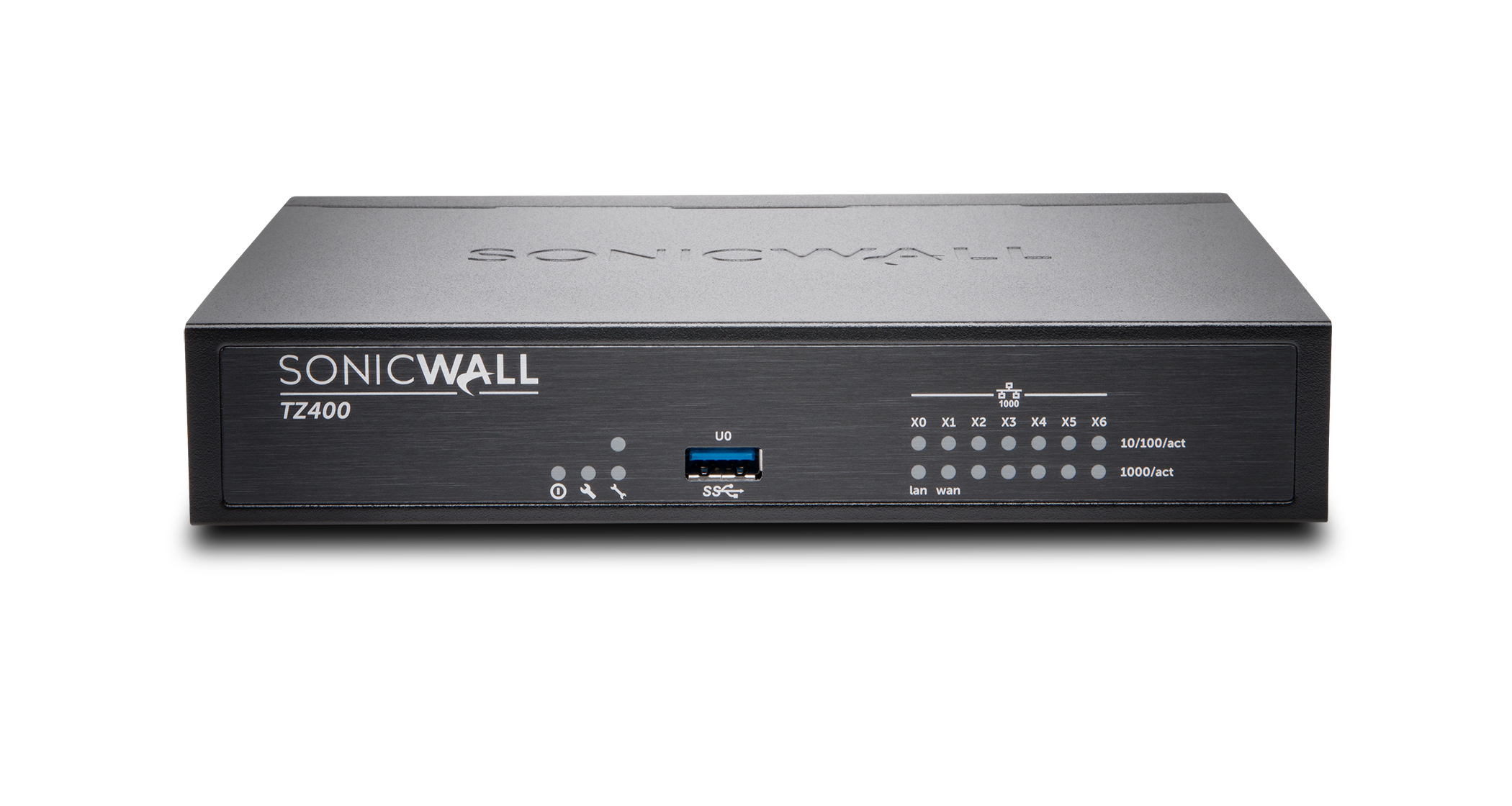

SonicWall TZ400
Full, speedy security solution for branch / small offices - 600Mbps Full Security- 20 Site-to-site Connections - 1.3Gbps SPI Firewall- 25 IPSec, 100 SSL-VPN clients (max) Suitable for demanding small office networks
NEW SonicWall TZ470
Advanced performance for distributed businesses - 1.5Gbps Full Security- Wireless devices available - 3.5Gbps Firewall- 200 IPSec, 150 SSL-VPN clients (max) Powered by SonicOS 7.0

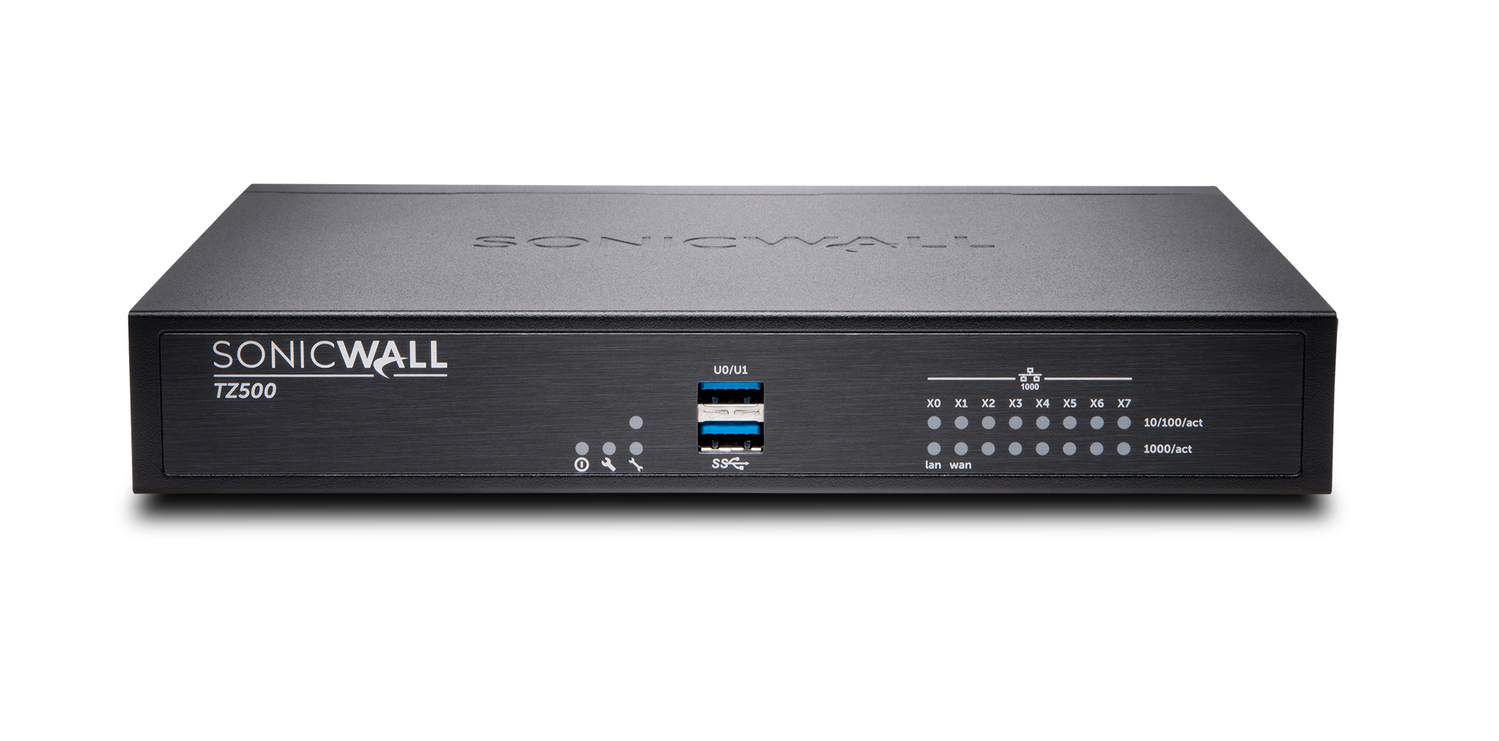

SonicWall TZ500
Complete security and control for growing offices - 700Mbps Full Security- 25 Site-to-site Connections - 1.4Gbps Firewall- 25 IPSec, 150 SSL-VPN clients (max) Suitable for demanding networks of up to 25 users
NEW SonicWall TZ570
Innovative performance for SMEs - 2.0Gbps Full Security- Wireless devices available - 4.0Gbps Firewall- 500 IPSec, 200 SSL-VPN clients (max) Powered by SonicOS 7.0
SonicWall TZ600
Ultimate security for high speed, demanding SME networks - 800Mbps Full Security- 50 Site-to-site Connections - 1.9Gbps Firewall- 25 IPSec, 200 SSL-VPN clients (max) Suitable for demanding networks of 50+ users
NEW SonicWall TZ670
Groundbreaking performance for SMEs - 2.5Gbps Full Security- Integrated SD-WAN - 5.0Gbps Firewall- 500 IPSec, 250 SSL-VPN clients (max) Powered by SonicOS 7.0
